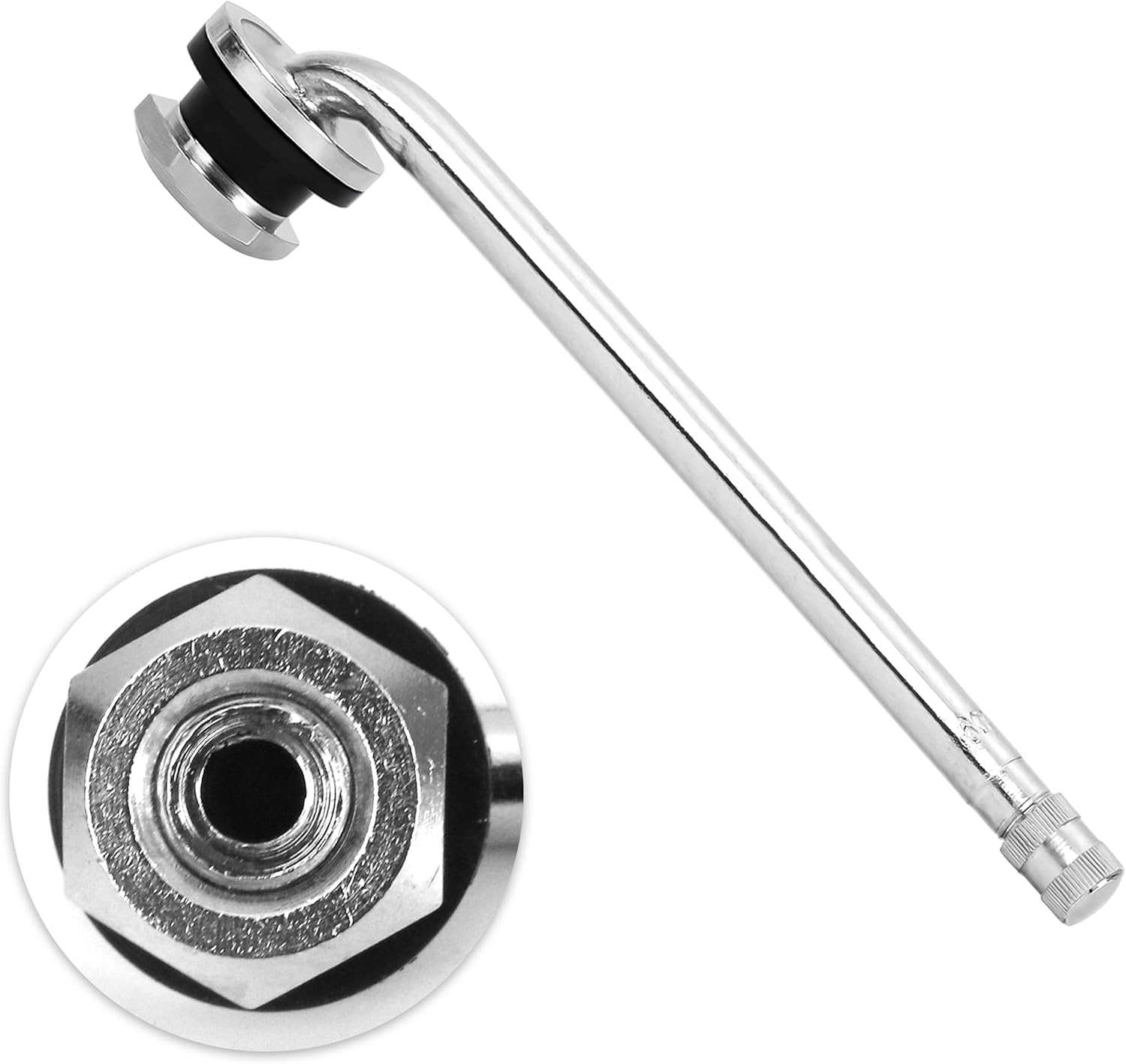

TR509 Metal Truck Tire Valve Stem for Aluminum Wheels – 4-3/4" Effective Length – 90° Bend

The C-HORSE TR509 Tire Valve Stem is a heavy-duty 90-degree metal tubeless tire valve designed for drop-center aluminum truck wheels. This valve is commonly used on commercial trucks, trailers, RVs, buses, and heavy-duty wheel applications where an angled valve stem is needed for easier air access.

Built with a strong metal valve body, rubber sealing grommet, and hex nut, the TR509 helps create a secure seal in the wheel valve hole. Its 90-degree bent design makes inflation and tire pressure checks easier, especially on deep aluminum disc wheels and commercial truck wheels.

Key Features

90° Bent Valve Design
Provides easier access for inflating tires and checking air pressure on deep or aluminum truck wheels.

Heavy-Duty Metal Construction
Built for commercial tire service, fleet maintenance, trailers, trucks, buses, and RV applications.

Clamp-In Style Seal
Rubber sealing grommet and hex nut help create a tight, secure seal in the wheel valve hole.

Designed for Aluminum Wheels
Commonly used on drop-center aluminum disc wheels requiring a longer bent valve stem.

Reliable Air Retention
Helps maintain proper tire pressure and reduce the chance of air leaks during heavy-duty use.

Product Details / Specifications

Brand: C-HORSE
Model: TR509
Valve Type: Tubeless Tire Valve Stem
Style: 90° Bent Metal Truck Valve
Effective Length: 4-3/4" / Approx. 120 mm
Valve Hole Size: 5/8" / 0.625"
Application: Drop-Center Aluminum Disc Wheels
Material: Metal Valve Body with Rubber Sealing Grommet
Use: Tubeless Tire Valve Stem Replacement
SKU: TR509

Applications

Commercial trucks
Heavy-duty trucks
Trailers
Buses
RVs
Fleet maintenance vehicles
Commercial tire service shops
Mobile truck tire service

Package Includes

C-HORSE TR509 90° Metal Truck Tire Valve Stem

Important Note

Please compare your old valve stem, wheel valve hole size, bend style, and effective length before purchase. This TR509 valve stem is designed for wheels with a 5/8" / 0.625" valve hole and an approximate 4-3/4" effective length.

The C-HORSE TR509 is a reliable replacement valve stem for aluminum truck wheels, offering heavy-duty construction, secure sealing, and easier air access for commercial tire service applications.
