WS-102 8mm Universal Wheel Spacer - 5 Lug Multi-Fit, 89mm ID, 165mm OD
by C-HORSE
Sold out
$0.00
Part #WS-102 is an 8mm (5/16") slotted wheel spacer made for 5-lug vehicles. One slotted plate covers a wide span of 5-lug bolt circles, so it drops straight over the factory studs and pushes the wheel outward to gain clearance at the caliper, hub face, or suspension arm, and to help fine-tune offset on a tight wheel fitment.
Highlights
- 8mm (5/16") thickness for a noticeable clearance gain
- Slotted 5-lug design, not locked to a single fixed bolt pattern
- Metric 5-lug bolt circles: 108, 112, 114.3, 115, 120, 130 and 135mm
- Standard 5-lug bolt circles: 4 1/4", 4 1/2", 4 3/4" and 5"
- 89mm (3 1/2") center bore clears larger hubs
- 165mm (6 1/2") outside diameter for full seating support behind the wheel
- Uses the vehicle's existing studs and lug nuts, no added hardware
Specifications
| Part Number | WS-102 |
| Type | Universal Wheel Spacer (5-Lug) |
| Thickness | 8mm (5/16") |
| Center Bore (I.D.) | 89mm (3 1/2") |
| Outside Diameter (O.D.) | 165mm (6 1/2") |
| 5-Lug Patterns (Metric) | 5x108, 5x112, 5x114.3, 5x115, 5x120, 5x130, 5x135mm |
| 5-Lug Patterns (Standard) | 5x4 1/4", 5x4 1/2", 5x4 3/4", 5x5" |
| Lug Count | 5 |
Pack Sizes

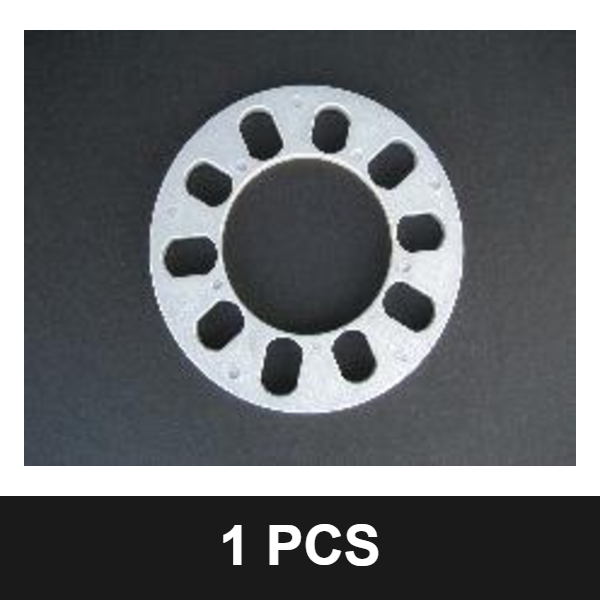

- 1 PCS - one spacer

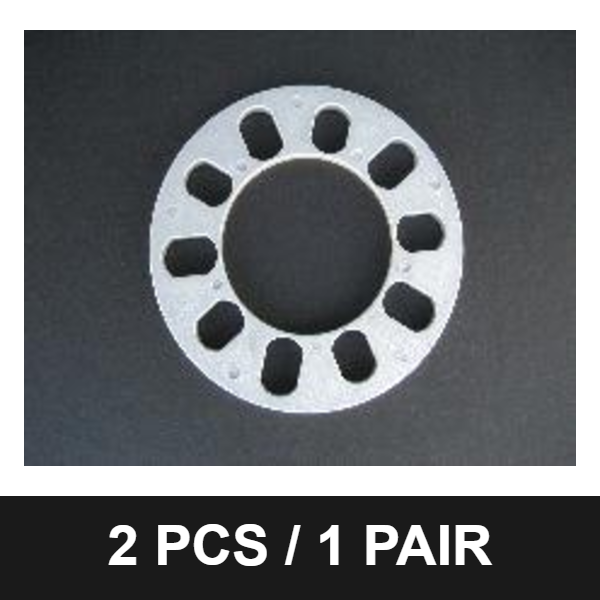

- 2 PCS / 1 Pair - covers one axle
- 4 PCS / 1 Set - covers front and rear
Before You Drive
An 8mm spacer shortens the usable stud length. Confirm that enough thread engages the lug nuts, check tire and fender clearance through full steering and suspension travel, and torque every lug nut to the vehicle specification. Re-torque after the first 50 miles.
