WS-109 5mm Universal Wheel Spacer - 4 & 5 Lug Multi-Fit, 78mm ID, 143mm OD
by C-HORSE
Sold out
$0.00
The WS-109 is a 5mm (3/16") slotted wheel spacer designed to cover a broad range of 4-lug and 5-lug bolt circles from a single part. It slides over the factory studs and pushes the wheel outward just enough to clear a caliper, a hub lip, or a tight suspension arm, without changing any other hardware on the vehicle.
Why Choose the WS-109
- 5mm (3/16") of added offset, enough to cure most light rubbing complaints
- Open slotted face covers five 4-lug and five 5-lug bolt circles
- 78mm (3 1/16") center bore clears the majority of passenger car hubs
- 143mm (5 5/8") outside diameter stays hidden behind the wheel face
- Mounts on the vehicle's original studs and lug nuts, no adapters or longer bolts needed
- Handy for gaining a little brake or hub face clearance during a wheel swap
Dimensions and Fitment
| Part Number | WS-109 |
| Type | Universal Wheel Spacer (4-Lug & 5-Lug) |
| Thickness | 5mm (3/16") |
| Center Bore (I.D.) | 78mm (3 1/16") |
| Outside Diameter (O.D.) | 143mm (5 5/8") |
| 4-Lug Patterns (Metric) | 4x100, 4x108, 4x110, 4x114.3, 4x120mm |
| 4-Lug Patterns (Standard) | 4x3 3/4", 4x4", 4x4 1/4", 4x4 1/2" |
| 5-Lug Patterns (Metric) | 5x108, 5x112, 5x114.3, 5x115, 5x120mm |
| 5-Lug Patterns (Standard) | 5x4", 5x4 1/4", 5x4 1/2", 5x4 3/4" |
| Lug Count | 4 or 5 |
Sold As
- 1 PCS - one spacer

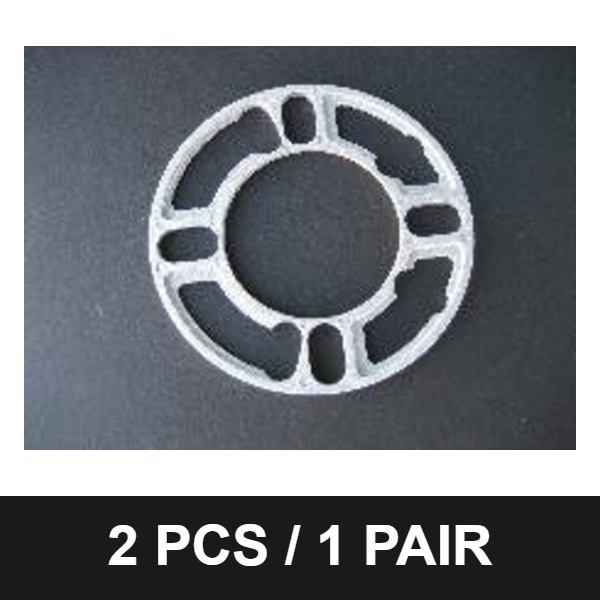

- 2 PCS - a pair for one axle

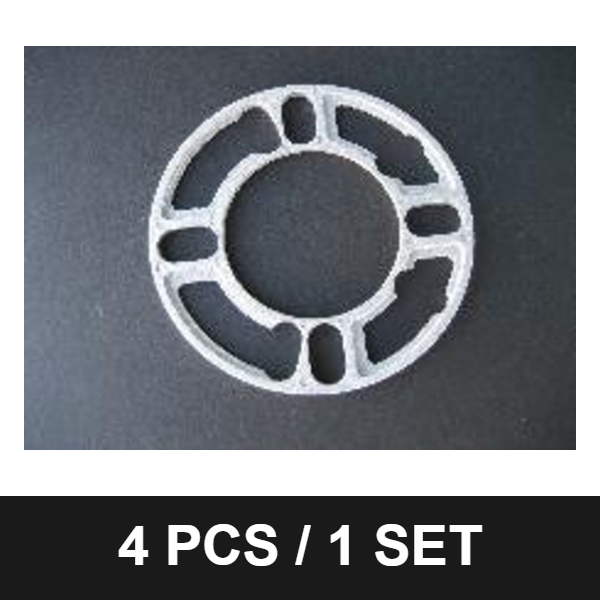

- 4 PCS - a complete set for all four corners
Before driving, confirm the lug nuts still have full thread engagement on the studs, recheck wheel and fender clearance through full steering lock, and torque every nut to the factory specification.
